Four types of Retrofits to meet your needs

Rigid Strip with Lens: Ideal for decorative applications where diffused light is desired and individual LED visibility is minimized.  About 11% lumen loss compared to our other strip types

Waterproof Rigid Strips: ​Sealed with silicone for complete submersibility.  Excellent for locations with wet exposure, highly dusty conditions, or areas that need frequent cleaning.


U-Strip: Good for wraparounds or other fixtures where wide light distribution pattern is needed​

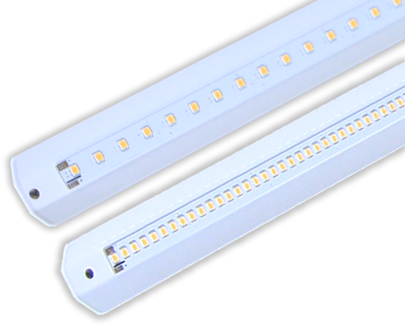

Wing Strip:The most popular retrofit kit.  Ideal for Troffers, Strip Lights, and most fixtures where the directional nature of the LEDs provides excellent performance.


For a glimpse at real-life applications of the LED Retrofit Kit Series, please visit the below projects.

Related Projects

  • The Michigan Plaza (Corridor & Electrical Rooms)
  • The Michigan Plaza (Maintenance Areas)
  • The Chicago Board of Trade (Maintenance Room)
  • The Chicago Board of Trade (Building Exterior/Facade)
  • The Chicago Board of Options Exchange (Computer Operations Room)

LED Retrofit Kit Series

The introduction of LED retrofit kits deliver versatility never before available in any technology. With its LED lighting strip plus driver power source design, retrofit applications allow for a simple, straightforward replacement of Fluorescent and HID lamps without replacing the fixture. End-users, such as Class A buildings, offices, educational institutions, warehouses, production facilities, et al. find the combination of versatility and quality unbeatable. With endless application possibilities, the retrofit kit yields effective and updated lighting solutions for troffers, coves, exterior signage, corridors, lobbies, perimeter overhangs, maintenance utility rooms, docks, conference rooms, technology equipment rooms, pools and so much more.

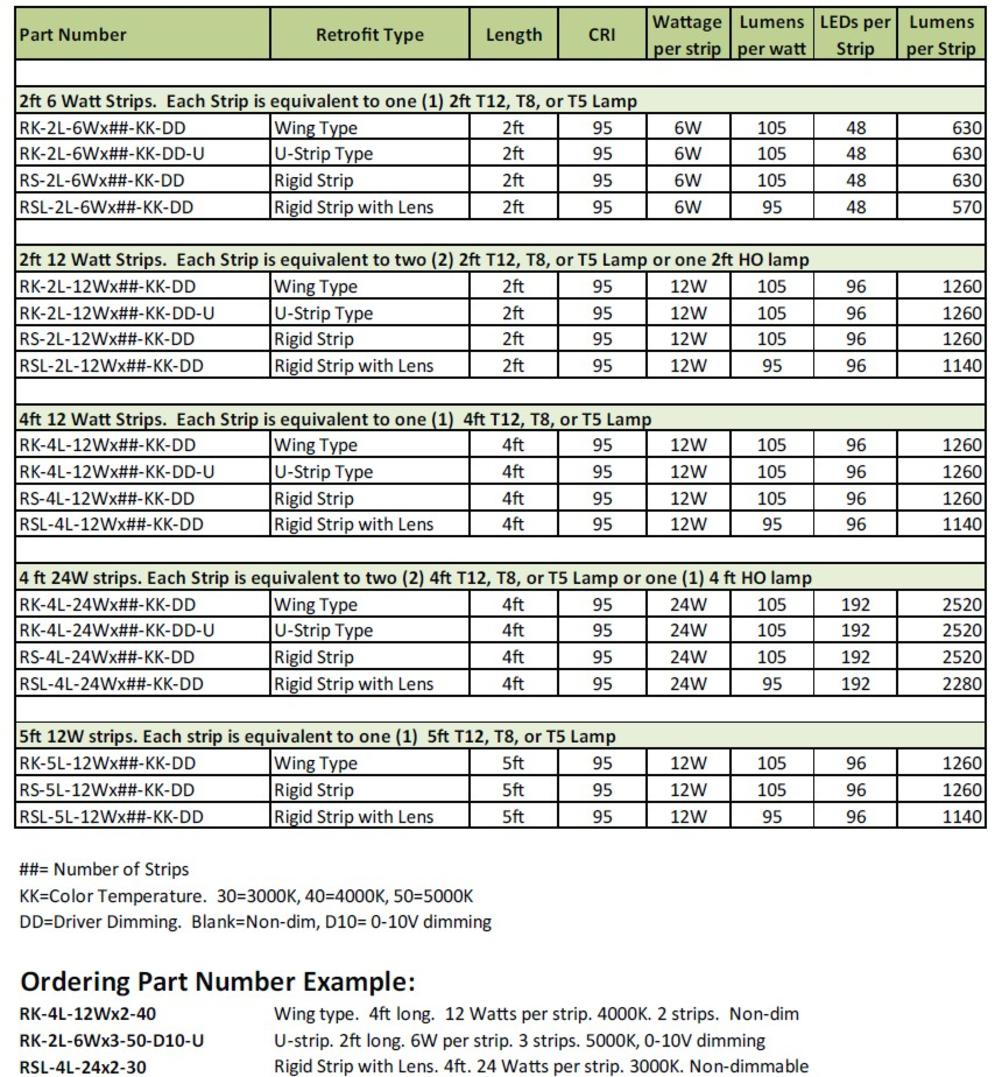

Unsure of how LED Retrofit Kits can benefit you? Custom Light Solutions can familiarize you with the latest LED technology and provide more information for any of your lighting project’s needs. Contact Us today or see the LED Retrofit Kit Cut Sheet for product specifications.

NEW!  RKL Series

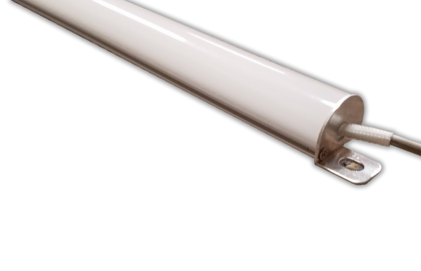

High CRI 270 degree Lens Strip

  • Magnetic Clips or Screw-On Mount
  • 95 CRI  Ra>95, Rf>95, Rg>100
  • ​130 Lumens per watt


The following metrics illustrate the numerous benefits of our LED Retrofit Kits:

  • Quick Connect for efficient installation​

  • Payback estimated between 9 – 24 months

  • High Lumen Output per watt (100+) for effective Fluorescent / HID replacement

  • Color Rendering Index ( 90+) for vivid color consistency

  • Color Temperature (3,000K, 4,000K, 5,000K) for all applications

  • Integrated Thermal Design to reduce heat build up.

  • Life Cycle Tested (100,000+ hours)

  • 120V-277V universal driver with high power factor (>.95) for efficiency

  • Instant On, Instant Off, Flickerless Operation

  • *Design Lights Consortium Certification

  • ​5 Year Warranty
